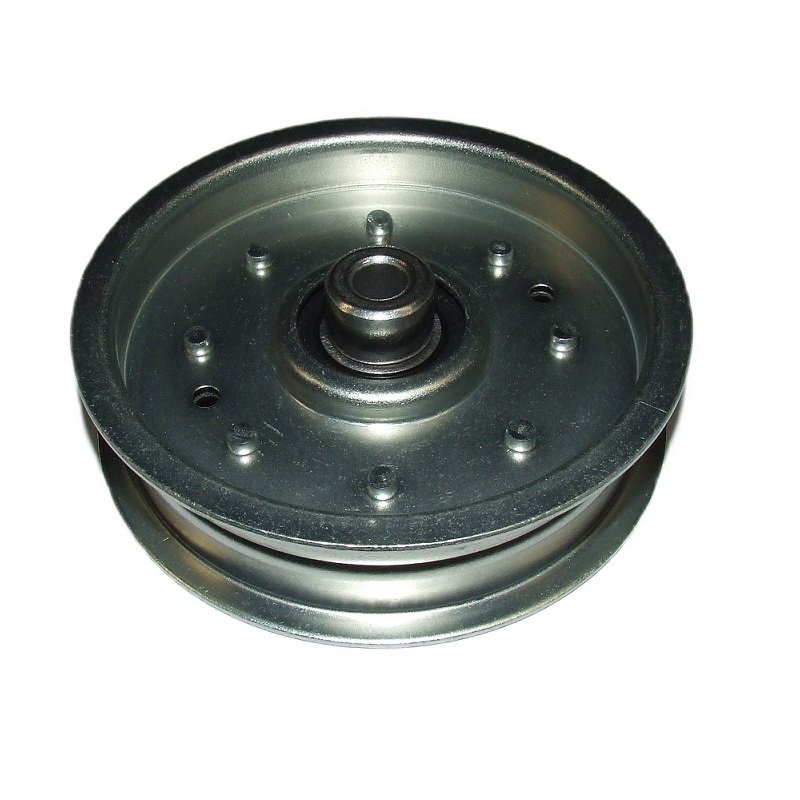

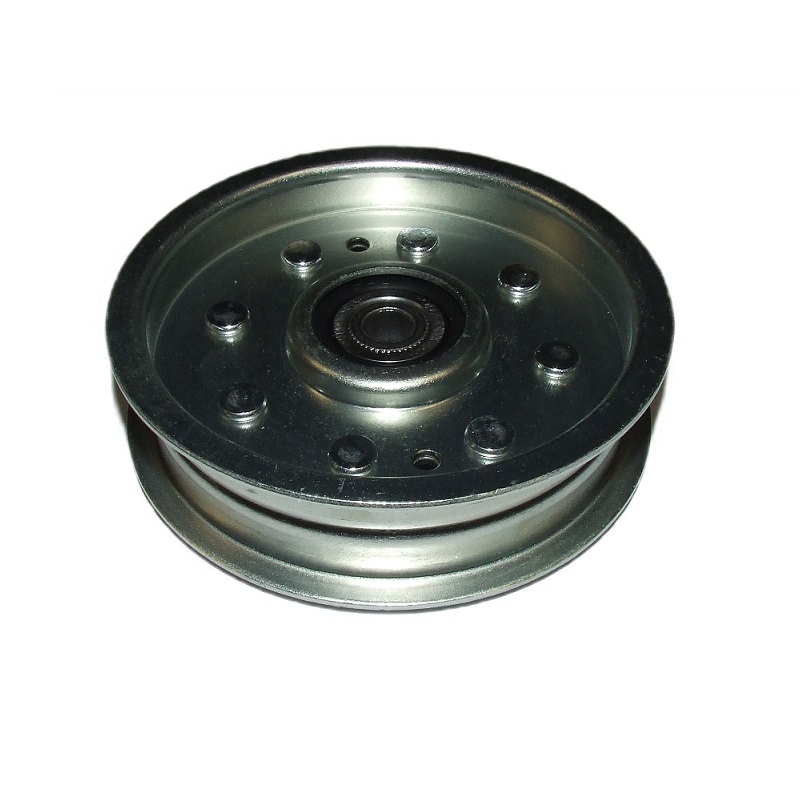

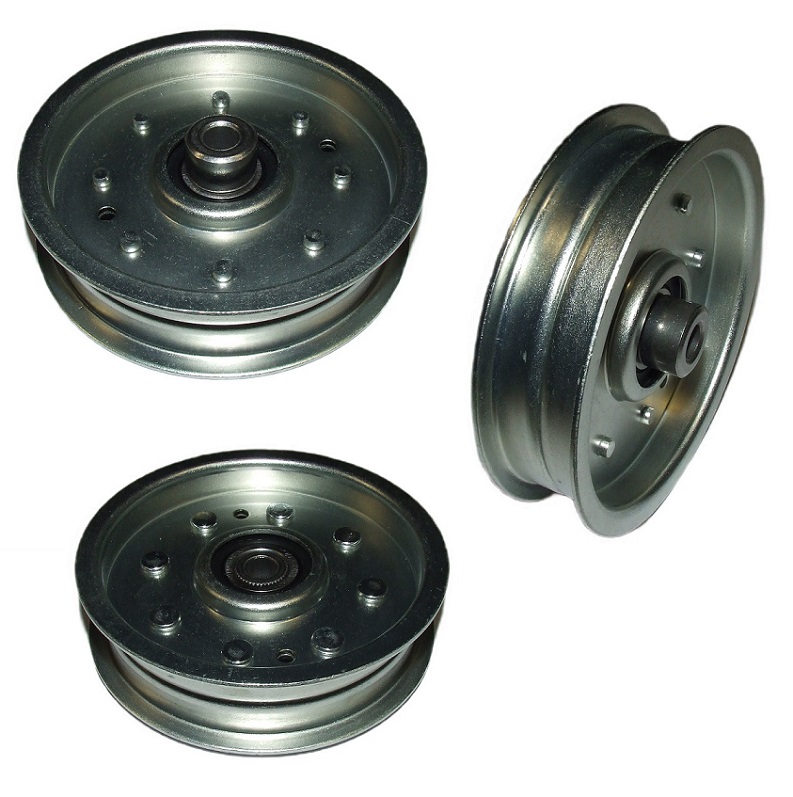

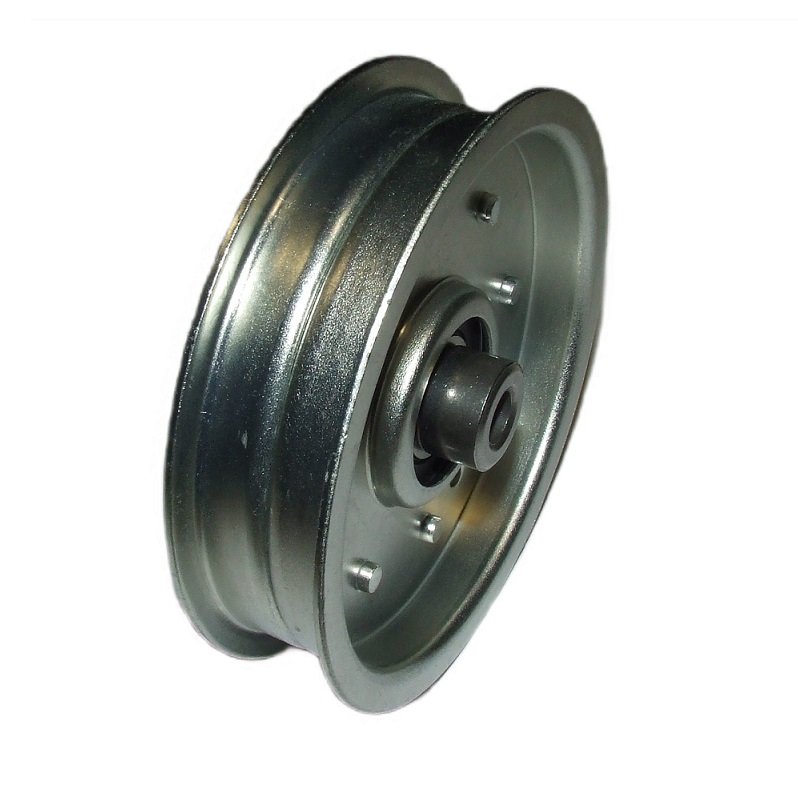

KOŁO PASOWE NAPĘD NOŻY Yard-Man AE AN HE AJ 5135 5150 5170 5190 5200 5185

KOŁO PASOWE PASKA DO NAPĘDU NOŻY DO TRAKTORKÓW OGRODOWYCH

MARKI I MODELE:

450 series, Mowing deck I (36"/92cm) - 196-719-678 (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012)

500 series, Mowing deck I (36"/92cm) - 196-719-678 (2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012)

900 series (NX-09), Mowing deck I (36"/92cm) - 196-806-678 (2013), 196-806A678 (2014, 2015, 2016, 2017, 2018, 2019)

Black Edition

155/92 - 13AM487E615 (2008)

175/92 - 13AN487E615 (2008, 2010)

180/92 - 13AT493E615 (2008)

220/105 TWIN HYDRO - 13AU497N615 (2008)

247-105 TWIN H - 13BU497N615 (2009, 2010), 13CU497N615 (2011)

272-105 TWIN H - 13AU997N615 (2012, 2013, 2014), 13HU997N615 (2014, 2015), 13HU99GN615 (2016)

282-105 TWIN KH - 13HI99GN615 (2016)

Black-Line

B 150/92 A - 13A3488E683 (2006, 2007)

Champ

Champ 25-105 - 13AI517N679 (2010)

Columbia

D 506 NR - 13BD506N597 (2003)

T 516 NR - 13BT516N597 (2003)

Edenparc

EP 16105 A - 13BD509N608 (2003)

EP 165/105 - 13AD489N608 (2004, 2005)

EP 180/105 - 13AT489N608 (2004, 2005)

EP 18105 A - 13BT509N608 (2003)

Fleurelle

AMH 1302 - 13B1509E619 (2003)

AMH 1303 - 13A1489E619 (2004, 2005)

AMH 1650 - 13B5509N619 (2003)

AMH 1651 - 13A5489N619 (2004, 2005)

Gartenland

GL 13,5-92 H - 13AH493E640 (2009), 13AH993E640 (2012, 2013), 13BH493E640 (2011), 13HH993E640 (2014)

GL 15,5-105 H - 13AM493N640 (2009), 13AM993N640 (2012, 2013), 13BM493N640 (2011), 13HM993N640 (2014)

GL 15.5/92 H - 13HM99GE640 (2015, 2016)

GL 17.5/105 H - 13HN99GN640 (2015, 2016)

GL 20-105 H - 13AT493N640 (2009), 13AT993N640 (2012, 2013), 13BT493N640 (2011), 13HT993N640 (2014)

GL 22.0/105 H - 13HU99GN640 (2015)

Greenbase

V 180 I - 13HT99KE618 (2016, 2016)

Gutbrod

GB 22/105 - 13CU516N690 (2011)

GLX 105 RA - 13AD90GN690 (2012), 13BA506N690 (2003, 2004), 13BV506N690 (2005), 13BW506N690 (2006, 2007), 13BW506N696 (2007), 13CD50GN490 (2011), 13CD50GN690 (2011, 2012), 13CJ50GN490 (2010), 13CJ50GN690 (2010), 13CV50GN490 (2009), 13CV50GN690 (2009), 13CW506N690 (2008)

GLX 105 RALK - 13BG506N690 (2008), 13BG50GN490 (2009), 13BG50GN690 (2009), 13BI506N690 (2003, 2004, 2005, 2006, 2007)

GLX 105 RAT - 13B7506N690 (2005, 2007), 13BT506N690 (2008), 13BT50GN690 (2009)

GLX 105 RH - 13AD51GN690 (2010), 13AV51GN490 (2009), 13AV51GN690 (2009), 13BV516N690 (2005), 13BX516N690 (2006, 2007), 13CX516N690 (2008), 13DJ51GN490 (2011), 13DJ51GN690 (2011, 2012)

GLX 105 RH-B - 13AT516NX90 (2009)

GLX 105 RH-K - 13HI91GN690 (2016)

GLX 105 RHL - 13BE516N690 (2005), 13BP516N690 (2006, 2007), 13BT516N690 (2003, 2004, 2006, 2007)

GLX 105 RHL-K - 13AG51GN490 (2009), 13AG51GN690 (2009), 13AG91GN690 (2012), 13BG516N690 (2008), 13BG51GN490 (2010), 13BG51GN690 (2010), 13BI516N690 (2004, 2005, 2006, 2007), 13CG51GN490 (2011), 13CG51GN690 (2011, 2012)

GLX 105 RHL-SK - 13AF51GN490 (2009, 2010), 13AF51GN690 (2009, 2010), 13AF91GN690 (2012), 13BF516N690 (2008), 13CF51GN490 (2011), 13CF51GN690 (2011, 2012)

GLX 122 RA - 13AX506J690 (2005)

GLX 122 RHL - 13AE516J690 (2008), 13AP516J690 (2005), 13AT516J690 (2004), 13AU516J690 (2004), 13BF51GJ690 (2011), 13BU51GJ690 (2010)

GLX 122 RHL-SK - 13A-516J690 (2009), 13AI516J690 (2008), 13AI51GJ490 (2009)

GLX 92 RA - 13BA506E690 (2003), 13CA506E690 (2004), 13CM506E690 (2005), 13CV506E690 (2005, 2006, 2007), 13DD50GE490 (2010), 13DD50GE690 (2010), 13DV506E690 (2008), 13DV50GE490 (2009), 13DV50GE690 (2009), 13ED50GE490 (2011), 13ED50GE690 (2011, 2012)

GLX 92 RALK - 13BI506E690 (2003), 13CG506E690 (2008), 13CG50GE490 (2009), 13CG50GE690 (2009), 13CI506E690 (2004, 2005, 2006, 2007)

GLX 92 RH - 13AD51GE690 (2010), 13AV51GE490 (2009), 13AV51GE690 (2009), 13CH516E690 (2005), 13CM516E690 (2005), 13CV516E690 (2006, 2007), 13DV516E690 (2008), 13ED51GE490 (2011), 13ED51GE690 (2011, 2012)

GLX 92 RH-K - 13HG91GE690 (2016)

GLX 92 RHLK - 13AG51GE490 (2009), 13AG51GE690 (2009), 13BG51GE490 (2010), 13BG51GE690 (2010), 13BI516E690 (2003), 13CG516E690 (2008), 13CI516E690 (2004, 2005, 2006, 2007), 13DG51GE490 (2011), 13DG51GE690 (2011, 2012)

GLX 92 SHL - 13BE516I690 (2005), 13BP516I690 (2006, 2007), 13BT516I690 (2004, 2005, 2007)

GLX 92 SHL-SK - 13AF51GI490 (2009, 2010, 2011), 13AF51GI690 (2009, 2010, 2011, 2012), 13BF516I690 (2008)

Iks-Pro

150 KRA - 13AV488E460 (2006), 13AV488E660 (2007)

200 KRA - 13BP508N460 (2006), 13BP508N660 (2007)

Lawnflite

703 - 13AA489E611 (2004), 13AH483E611 (2007), 13AH489E611 (2005, 2006, 2007), 13AM489E611 (2005)

705 - 13BA509E611 (2003), 13CA509E611 (2004), 13CV509E611 (2005, 2006, 2007)

705 Hydro - 13CV513E611 (2007)

903 - 13AA489N611 (2004), 13AM483N611 (2007), 13AM489N611 (2005, 2006, 2007)

908 - 13BE509N611 (2005), 13BP509N611 (2006, 2007), 13BQ509N611 (2003, 2004)

908 Hydro - 13BP513N611 (2007)

909 - 13AE509J611 (2005), 13AP509J611 (2006, 2007)

M Tech

M 155/105 A - 13AM488N605 (2009)

M 155/92 A - 13AM485E605 (2010)

M 220/105 A - 13AF488N605 (2010), 13AU485N605 (2010), 13AU488N605 (2008, 2009)

Mac Allister

JE 150/92 A - 13A3488E668 (2007)

S 220/105 H - 13AU498N668 (2006, 2007)

Massey Ferguson

MF 36-15 RD - 13AV51CE695 (2007), 13BV51CE695 (2008), 13CV51CE495 (2009, 2010), 13CV51CE695 (2009, 2010)

MF 36-16 ARD - 13AD90GE695 (2014), 13HD90GE395 (2015, 2016), 13HD90GE695 (2014, 2015)

MF 36-16 RD - 13AG91CE695 (2012), 13CG51CE495 (2011), 13CG51CE695 (2011)

MF 36-16 RH - 13HD99GE695 (2016)

MF 36-18 RD - 13AD91GE695 (2014), 13AE51CE695 (2007), 13BD91CE695 (2013), 13HD91GE695 (2014, 2015)

MF 36-18 RDT - 13HT91GE695 (2015)

MF 36-20 HG - 13AE51CI695 (2007)

MF 36-22 HG - 13AF91CI695 (2012, 2013), 13AF91GI695 (2014), 13BF51CI695 (2008), 13CF51CI495 (2009, 2010, 2011), 13CF51CI695 (2009, 2010, 2011), 13HF91GI695 (2014), 13HP91GI695 (2015)

MF 36-22 RD - 13BF51CE695 (2008), 13CF51CE495 (2009, 2010), 13CF51CE695 (2009, 2010)

MF 41-18 ARD - 13AJ90GN695 (2014), 13BJ90CN695 (2013), 13HJ90GN695 (2014, 2015)

MF 41-18 RD - 13AJ91CN695 (2012), 13BX51CN695 (2008), 13CJ51CN495 (2011), 13CJ51CN695 (2011), 13CV51CN495 (2009, 2010), 13CV51CN695 (2009, 2010)

MF 41-18 RH - 13HJ99GN695 (2016)

MF 41-20 RD - 13AE51CN695 (2007)

MF 41-22 RD - 13AF91CN695 (2012), 13AF91GN695 (2014), 13BF91CN695 (2013), 13CF51CN495 (2011), 13CF51CN695 (2011), 13HF91GN695 (2014), 13HP91GN395 (2015, 2016), 13HP91GN695 (2015)

MF 41-22 RH - 13HP91GN695 (2016)

MF 41-24 RD - 13CI51CN495 (2010), 13CI51CN695 (2010)

MF 41-25 RD - 13BI51CN695 (2008), 13CI51CN495 (2009), 13CI51CN695 (2009)

MF 48-23 RD - 13AB51CJ695 (2007)

MF 48-24 RD - 13AI91CJ695 (2012, 2013), 13AI91GJ695 (2014), 13CI51CJ495 (2010, 2011), 13CI51CJ695 (2010, 2011), 13HI91GJ695 (2014)

MF 48-25 RD - 13BI51CJ695 (2008), 13CI51CJ495 (2009), 13CI51CJ695 (2009)

Mastercut

Mastercut 105 H - 13AM493N659 (2007)

Mastercut 92 A - 13AH483E659 (2007)

Mastercut 92 H - 13AM493E659 (2007)

Motec

MTR 400 - 13A1487N630 (2004), 13A1487N640 (2005)

Okay

Master Cut 105-15/200 H - 13HU99KN675 (2015)

Raiffeisen

RMH 514-105 A - 13BA507N628 (2003, 2004), 13BM507N628 (2005, 2006, 2007)

RMH 514-92 A - 13BA507E628 (2003), 13CA507E628 (2004), 13CH507E628 (2005, 2006, 2007), 13CM507E628 (2005)

RMH 518-105 H - 13BQ517N628 (2003, 2004), 13BT517N628 (2005)

RMH 520-105 H - 13BT517N628 (2006, 2007)

Ranger

Ranger 3 XL (22/105 H) - 13AU993N661 (2012)

Rasor

16/92 H - 13AT493E618 (2009, 2010), 13AT495E618 (2010), 13AT995E618 (2012, 2013), 13BT495E618 (2011)

V 180 I - 13HT99KE618 (2014, 2014)

Silver Cut

SC 155/92 - 13A3483E612 (2007)

SC 180/105 - 13A3483N612 (2007)

Silverline

155/92 A - 13AM483E486 (2009), 13BM483E486 (2011), 13CM483E486 (2011)

155/92 A PREMIUM - 13CA508E677 (2004)

16-92 H Swiss-Edition - 13AT493E677 (2009)

170/92 A PREMIUM - 13C5508E677 (2004)

180/105 A - 13BT503N486 (2011)

180/105 A PREMIUM - 13BT508N677 (2004)

200/105 H - 13AT513N486 (2009)

22/105 H - 13AU499N677 (2008), 13BU493N677 (2009)

Silvertrac 15/92 A - 13AM483E477 (2007), 13AM483E677 (2007), 13AM488E677 (2005)

Silvertrac 15/92 H - 13AM498E677 (2005)

Silvertrac 155/92 H - 13BM493E486 (2010)

Silvertrac 17/105 H - 13B3518N677 (2007)

Silvertrac 17/92 H - 13A3499E677 (2006, 2007)

Silvertrac 175/105 A - 13AD483N677 (2007)

Silvertrac 175/105 H - 13BD518N677 (2005, 2006, 2007)

Silvertrac 18/92 H - 13C7518E677 (2004, 2005)

Silvertrac 180/105 H - 13BT513N486 (2010)

Silvertrac 20 T/105 H - 13BT513N477 (2007), 13BT513N677 (2007)

Silvertrac 20/105 H - 13AT493N677 (2008), 13B7518N677 (2004, 2005, 2007), 13BQ518N677 (2004), 13CT493N677 (2011)

Silvertrac 22/105 H - 13A7499N677 (2007), 13B7499N677 (2006, 2007), 13B7513N477 (2006), 13B7513N677 (2005, 2007)

Sunline

SL-H 1551 - 13A3489N685 (2006, 2007)

Verts Loisirs

VL 105 GCA - 13AO98KN617 (2014), 13HO98KN617 (2014)

VL 105 H - 13AN91TN617 (2012)

VL 105 HBA - 13AN51TN417 (2010), 13BN51TN417 (2011)

VL 15536 TD - 13AA488E617 (2004, 2005), 13BA508E617 (2003)

VL 165 H 42 TD - 13AD488N617 (2004, 2005), 13BD518N617 (2003)

VL 18 H 42 TD - 13BT518N617 (2003)

VL 92 GCA - 13AM98KE617 (2014), 13HM98KE617 (2014)

VLK 20 H 92 - 13BP518I617 (2007)

White

RD 1750 Hydro - 13B4516N190 (2003)

RD 506 N - 13BD506N590 (2003)

RD 516 N - 13BT516N590 (2003)

Yard-Man

AE 5135 - 13BA504E643 (2003), 13CA504E643 (2004), 13CM504E643 (2005)

AE 5150 - 13CV504E643 (2006, 2007), 13DV504E643 (2008), 13DV50YE443 (2009), 13DV50YE643 (2009)

AE 5150 K - 13BI504E643 (2003), 13CG504E643 (2008), 13CG50YE443 (2009), 13CG50YE643 (2009), 13CI504E643 (2004, 2005, 2006, 2007)

AE 5155 - 13DD50YE443 (2010), 13DD50YE643 (2010), 13ED50YE443 (2011), 13ED50YE643 (2011)

AJ 5190 - 13AX504J643 (2005)

AJ 5200 - 13AP504J643 (2006, 2007)

AN 5150 - 13BA504N643 (2003, 2004), 13BV504N643 (2005)

AN 5150 K - 13BG504N643 (2008), 13BG50YN643 (2009), 13BI504N643 (2003, 2004, 2005, 2006, 2007)

AN 5170 - 13BW504N643 (2006, 2007), 13CV50YN443 (2009), 13CV50YN643 (2009), 13CW504N643 (2008)

AN 5175 - 13CD50YN443 (2011), 13CD50YN643 (2011)

AN 5185 - 13CJ50YN443 (2010), 13CJ50YN643 (2010)

HE 5135 - 13CH514E643 (2005), 13CM514E643 (2005)

HE 5150 - 13AV51YE443 (2009), 13AV51YE643 (2009), 13CV514E643 (2006, 2007), 13DV514E643 (2008)

HE 5150 K - 13AG51YE443 (2009), 13AG51YE643 (2009), 13BI514E643 (2003, 2004), 13CG514E643 (2008), 13CI514E443 (2006), 13CI514E643 (2004, 2005, 2006, 2007), 13CI514E671 (2006, 2007)

HE 5160 K - 13BG51YE443 (2010), 13BG51YE643 (2010), 13DG51YE443 (2011), 13DG51YE643 (2011)

HE 5175 - 13AD51YE643 (2010), 13BD514E671 (2003), 13ED51YE443 (2011), 13ED51YE643 (2011)

HJ 5220 - 13AP514J643 (2005), 13AT514J643 (2004), 13AU514J643 (2004)

HN 5150 - 13BV514N643 (2005)

HN 5150 K - 13AG51YN443 (2009), 13AG51YN643 (2009), 13BG514N643 (2008), 13BI514N643 (2004, 2005, 2006, 2007)

HN 5160 K - 13BG51YN443 (2010), 13BG51YN643 (2010)

HN 5175 - 13AD51YN643 (2010)

HN 5180 - 13AT514N671 (2003), 13AV51YN443 (2009), 13AV51YN643 (2009), 13BX514N643 (2006, 2007), 13CX514N643 (2008)

HN 5180 B - 13AT514NX43 (2009)

HN 5180 K - 13CG51YN643 (2011)

HN 5185 - 13CJ51YN443 (2011), 13CJ51YN643 (2011)

HN 5200 - 13BE514N643 (2005), 13BP514N643 (2006, 2007), 13BP514N671 (2006, 2007), 13BT514N643 (2003, 2004, 2006, 2007), 13BT514N671 (2003)

HN 5220 K - 13AF51YN443 (2009, 2010), 13AF51YN643 (2009, 2010), 13BF514N643 (2008), 13CF51YN443 (2011), 13CF51YN643 (2011)

HS 5180 - 13BT514I643 (2004)

HS 5200 - 13BE514I643 (2005), 13BP514I643 (2006, 2007), 13BT514I643 (2006)

HS 5220 K - 13AF51YI443 (2009, 2010, 2011), 13AF51YI643 (2009, 2010, 2011), 13BF514I643 (2008)

J 5240 K - 13BI51YJ443 (2010), 13BI51YJ643 (2010)

J 5250 K - 13AI514J643 (2008), 13AI51YJ443 (2009), 13AI51YJ643 (2009)

YM 22/105 - 13CU514N643 (2011)

NR CZĘŚCI ORYGINALNEJ:

756-04049

WYMIARY:

średnica całkowita koła 114,5 mm

średnica tulei / otworu wewnątrz 9,5 mm

długość tulei 25 mm

całkowita wysokość 33,5 mm

$$$
